Quick Details

  • Storage / Tankless: Instant / Tankless
  • Installation: Wall Mounted
  • Housing Material: White Coated
  • Certification: CE, ISO9001:2000/ISO14001
  • Power (W): 20000
  • Voltage (V): 3
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: MOTU
  • Model Number: MT-F13
  • Product Name: Gas water heater
  • Gas type: LPG/NG
  • Work Type: Open Flue/Force Exhaust Type
  • Type: Tankless
  • Use: Bathroom
  • Water Pressure: 0.02Mpa-0.8Mpa
  • Time Control: 20Mins In-built Timer
  • Heat Efficiency: Over 85%
  • Panel Material: White coating/glass/stainless steel
  • Port of Loading: Shunde port

Packaging & Delivery

Packaging Details 1.If order 1*20''gp, color box offered and Logo printed
2.Standard export package with inner foam.
Delivery Time Shipped in 30 days after payment





Instant gas water heater flue type tankless water heater



(6L/7L/8L/10L/12L/14L/16L/18L/20L)



6-20L instant water heater
Low pressure start
Double ignition pin
Self-diagnose function
Multiple safety protection




Product Description


Technical Specifications

6-20L gas geyser open flue type

ProductInstant Open Flue Type Gas Water Heater
Product Description*White Powder Coated Panel
*Low Water Pressure Start-up, Fire & Water Separate Regulation
*Flame Failure Safety Device
*Over Water Pressure Protection Device
*Anti Dry-burning Protection Device
*Over Heat Protection & Anti Frozen Device
*20-Minute Timer
Exhaust Way Open Flue Type
Ignition Mode Automatic Electrical Pulse Ignition.
Use Gas Type Liquefied Petroleum Gas (LPG) or Natural Gas (NG)
Rated Voltage Open flue type is ignited by battery power with voltage 3V.
Rated Gas Pressure LPG : 2800 Pa      NG: 1300 Pa & 2000 Pa
Suitable Water Pressure (Mpa) 0.02 ~ 0.8 Mpa
Heating StatusHeating Time ≤15 Seconds ;Over Temperature ≤2℃; Stability Time:≤15 Second
Connection Pipe Specs Water Inlet: G1/2'' Pipe ; Water Outlet: G1/2'' Pipe ; Gas Inlet: G1/2'' Pipe
Rated Heat Input  Power12 KW14 KW16 KW20 KW24 KW32 KW36 KW40 KW
Rated Water Output  6L/Min   7L/Min

 8L/Min

 10L/Min12L/Min16L/Min18L/Min20L/Min
Weight Of Heat Exchanger     1KG   1.3KG   1.8KG2KG   2.2KG   2.8KG   3.6KG   3.8KG
Gas Valve Specification

Small

   Valve

Small

Valve

Regular

Valve

Regular

Valve

Middle

Valve

Middle

Valve

Big

Valve

  Big

Valve











Packaging & Shipping

Packaging & Shipping













Detail Images

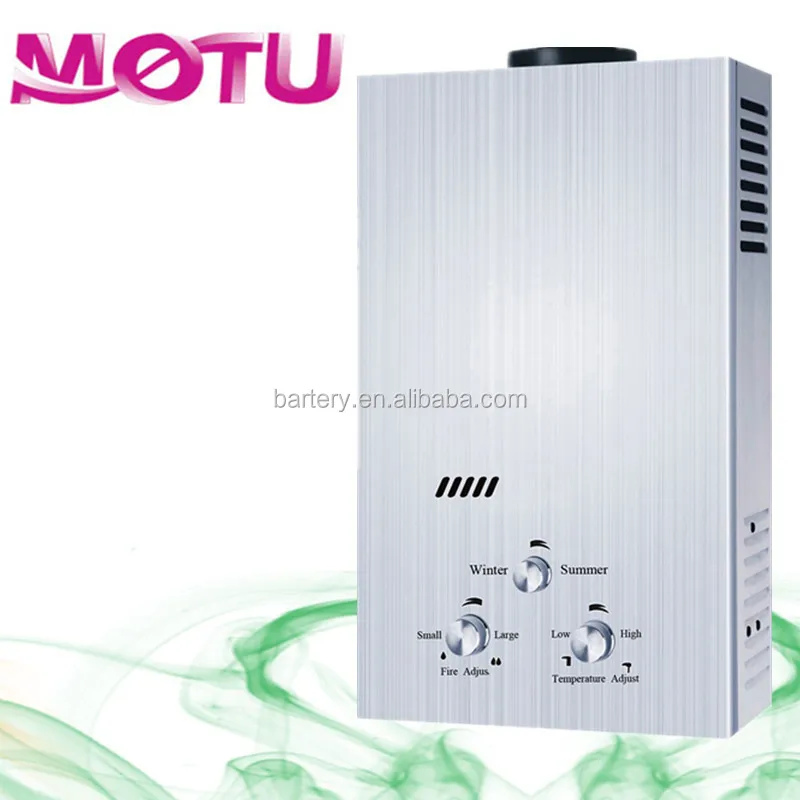

Tankless Heater Outlook





Inner Structure





*Over Heat Protection: When system finds the temperature is exceed workable extent, it will cut off whole system to protect devices
